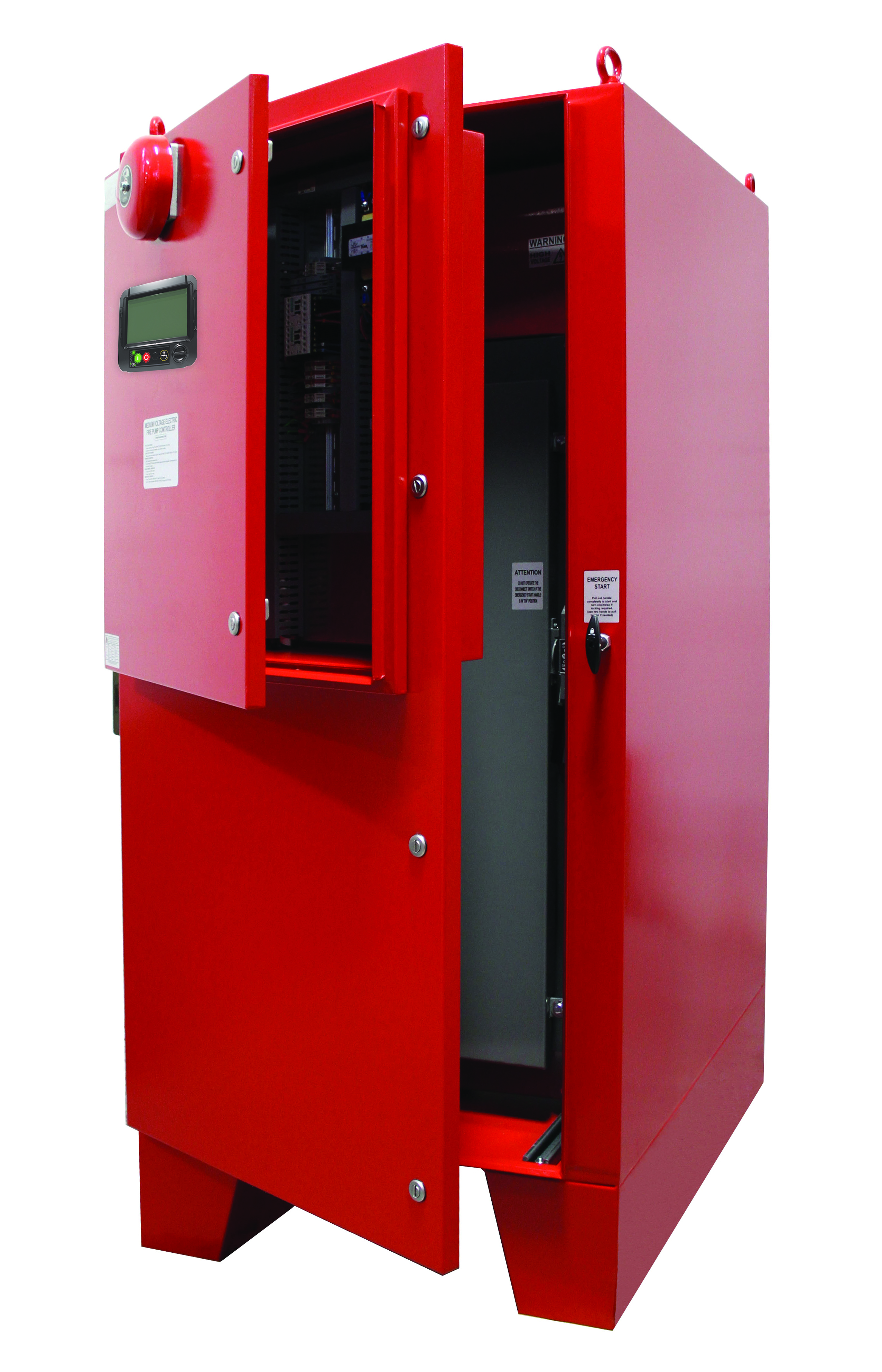

Model MPA – Medium Voltage Fire Pump Controller

Model MPA – Medium Voltage Fire Pump Controller

Downloadables Manual
Brochure
  • Designed to control electric fire pump motors from 2200V to 7200V / 100 to 4500HP
  • Back, top and bottom removable gland plates for power and motor lead connections
  • Equipped with inner protective covers for operator safety
  • Isolated control section from the vacuum contactor / medium voltage assembly
Certificate Certificate Certificate Certificate
  • Designed to control electric fire pump motors from 2200V to 7200V / 100 to 4500HP
  • Back, top and bottom removable gland plates for power and motor lead connections
  • Equipped with inner protective covers for operator safety
  • Isolated control section from the vacuum contactor / medium voltage assembly
  • Short Circuit Protection
  • Motor Contactor:
    • Vacuum Type
  • Emergency Start Handle
  • Locked Rotor Protector
  • Electrical Readings
    • Voltage & amperage display
  • Pressure & Event recorder
  • Built to NFPA 20 (latest edition)
  • Underwriters Laboratory (UL)
    • UL218 – Fire pump controllers
  • FM Global
    • Class 1321/1323
  • Optional: CE Mark – Various EN, IEC & CEE directives and standards

ViZiTouch Operator Interface

  • 4.2” color touch screen (HMI technology)
  • Embedded microcomputer with software PLC logic
  • Expandable storage
  • Multi-language
  • Upgradable software
  • Enclosure
    • Three compartments with indivdual doors for:
      • Starter (fuses and vacuum contactor)
      • Power transformer
      • Control circuit
  • Protection Rating:
    • Standard NEMA 2 Assembly
    • Optional:
      • NEMA 12
      • NEMA 3
      • NEMA 3R
      • NEMA 4
      • NEMA 4X-304 sst painted
      • NEMA 4X-304 sst brushed finish
      • NEMA 4X-316 sst painted
      • NEMA 4X-316 sst brushed finish
      • IP54
      • IP55
      • IP65
      • IP66
  • Accessories
    • Back, top and bottom cable entry removable gland plates
    • Lifting Lugs
    • Keylock handle
  • Paint Specifications
    • Red RAL3002
    • Powder coating
    • Glossy textured finish

Communication Protocol Capability

  • Protocol: Modbus
  • Connection type: shielded female connector RJ45
  • Frame Format: TCP/IP
  • Addresses: See bulletin MOD-GPx
