JPx Series – Jockey Pump Controllers

Manufactured in Canada for all markets

JPx Series – Jockey Pump Controllers

  • Designed to control jockey pumps which maintain water pressure in fire pump serviced systems.
  • Prevents unnecessary starting of the fire pump due to small leaks in the sprinkler system piping.
  • Designed to control jockey pumps which maintain water pressure in fire pump serviced systems.
  • Prevents unnecessary starting of the fire pump due to small leaks in the sprinkler system piping.

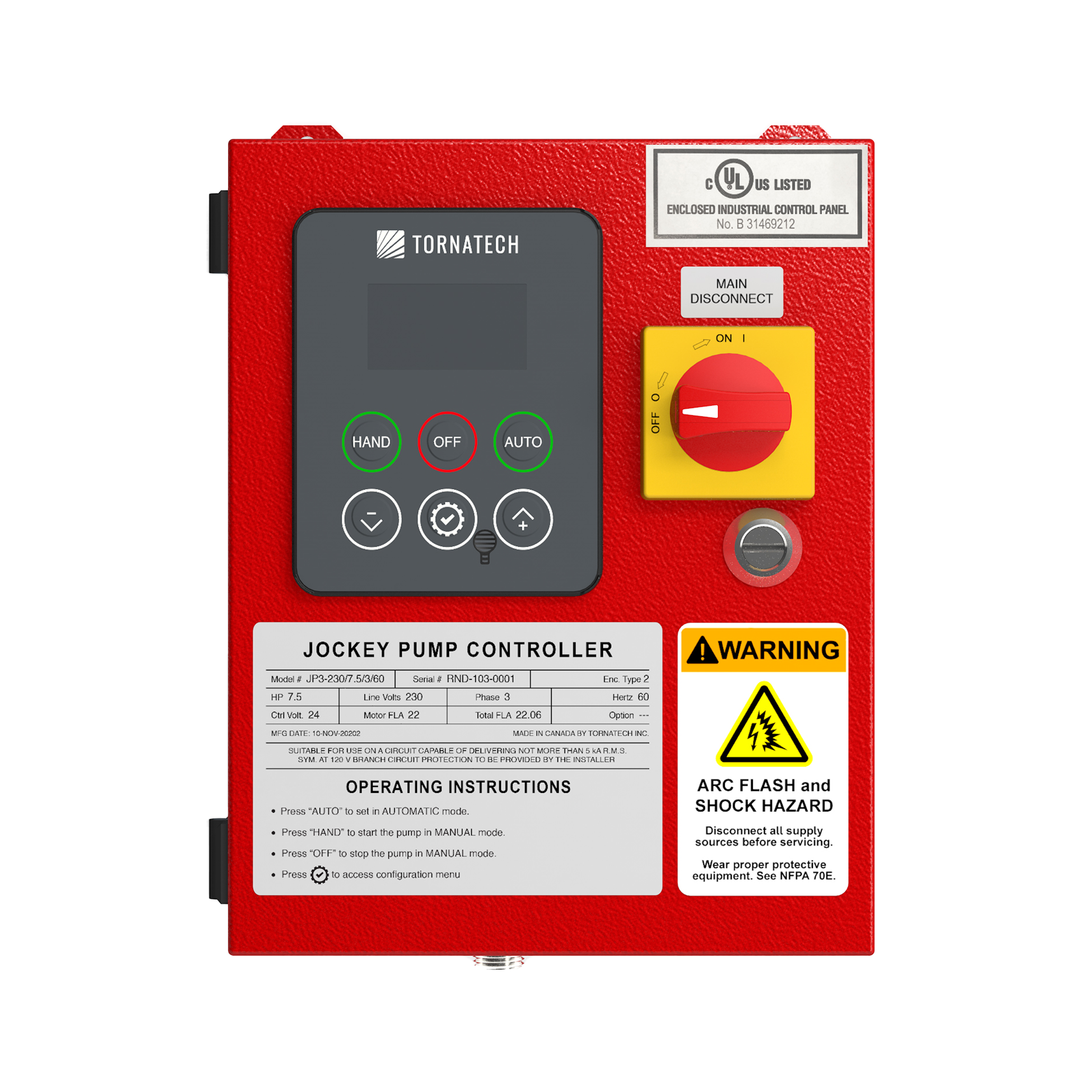

Model JPLT

  • ViZiLT operator interface
    • All adjustments on door front
  • Visual indicators
    • H-O-A position
    • System pressure
    • Adjustable in PSI, BAR
    • Cut-out and Cut-In pressure setting
    • Manual motor run
    • Automatic motor run
    • Motor overload
    • Pump start counter
    • Elapsed time meter (hours / non-resettable)
  •  Timers
    • Minimum run period timer
    • Sequential start timer
  •  Operators
    • Main disconnect handle
    • HAND-OFF-AUTO pushbuttons
    • MENU navigation pushbuttons
  • Audible alarm
  • NEMA 2 enclosure
  • Pressure transducer
  • Type-F fuse-less magnetic motor starter

All Models except Models DJP and DJD

  • HP rated fuse-less thru-the-door main disconnect switch.
  • iPD+ Operator Interface provides
    • Visual indicators
      • Manual motor run
      • Automatic motor run
      • System pressure
      • Automatic mode
      • Off mode
      • Motor overload
      • Pump start counter
      • Elapsed time meter (hours / non-resettable)
    • All adjustments on door front
      • Timers
        • Minimum run period timer
        • Sequential start timer
      • Operators
        • OFF-AUTO pushbutton
        • Start and stop pushbuttons.
  • Pressure transducer

Model JPY

  • Accepts single power source
  • Controls one (1) jockey pump
  • Only available for 200V to 600V/3Ph/50-60Hz (3-phase applications)
  • Thermo-magnetic motor protector
  • Wye-delta open transition motor starter

Model JPD

  • Accepts single power source
  • Controls two (2) pumps as LEAD-STANDBY (full redundancy)
  • Available for
    • 220V to 240V/1Ph/60Hz
    • 200V to 600V/3Ph/50-60Hz
  • Automatic alternation
  • Lead pump selector switch
  • Thermo-magnetic motor protectors (x2)
  • Across the line motor starters (x2)

Model JPV

  • Accepts single power source
  • Controls one (1) jockey pump
  • Only available for 200V to 600V/3Ph/50-60Hz (3-phase applications)
  • Variable Speed Drive with built-in motor protection

Model DJP

  • Accepts two separate power sources (i.e. normal & alternate)
  • Automatically connects to alternate power in case of normal power failure.
  • Controls one (1) pump
  • Only available for 200V to 600V/3Ph/50-60Hz (3-phase applications)
  • Hand-Off-Auto selector switch
  • Normal-Test selector switch
  • One automatic switchover device (transfer switch)
  • Visual indicators
    • Power On
    • Motor Run
    • Alternate power available
    • Normal power available
    • Connected to Normal position
    • Connected to Alternate position
  • Thermo-magnetic motor protectors (x2)
  • Across the line motor starters (x2)

Model DJD

  • Accepts two separate power sources (i.e. normal & alternate)
  • Automatically connects to alternate power in case of normal power failure.
  • Controls two (2) pumps as LEAD-STANDBY (full redundancy)
  • Only available for 200V to 600V/3Ph/50-60Hz (3-phase applications)
  • Hand-Off-Auto selector switch
  • Normal-Test selector switch
  • P1- AUTO-P2 lead pump selector switch
  • One automatic switchover device (transfer switch)
  • Visual indicators
    • Power On
    • Motor Run (x2)
    • Alternate power available
    • Normal power available
    • Connected to Normal position
    • Connected to Alternate position
  • Thermo-magnetic motor protectors (x2)
  • Across the line motor starters (x2)

All Models

  • UL508A – Industrial Pump Controllers
  • CE Mark
    • Tornatech Inc Laval, Canada = Optional
    • Tornatech Europe SA, Belgium = Standard
    • Tornatech FZE Dubai, UAE =  Optional



Standard

  • Tornatech Inc Laval, Canada = NEMA 2
  • Tornatech Europe SA, Belgium = IP55
  • Tornatech FZE Dubai, UAE =  NEMA 2

Optional

  • NEMA 12
  • NEMA 3
  • NEMA 3R
  • NEMA 4
  • NEMA 4X-304 sst painted
  • NEMA 4X-304 sst brushed finish
  • NEMA 4X-316 sst painted
  • NEMA 4X-316 sst brushed finish

Accessories

  • Wall mounting lugs (x4)

Paint Specifications

  • Red RAL3002
  • Power coating
  • Glossy textured finish
certificate certificate
Available Models
